sz-100 portable metal surface grinding machine / mould grinding equipment SZ-100 manufacturer from China Shanghai Shengzao Mechanical & Electrical Co.,Ltd

sz-100 portable metal surface grinding machine / mould grinding equipment

Payment Terms:	T/T,WU
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SZ-100

Production Capacity: 2000 sets per month

Delivery Date: 3 days

Means of Transport: Ocean,Land,Air

Packing: carton case

Brand Name: shengzao

portable metal surface grinding machine / mould grinding equipment

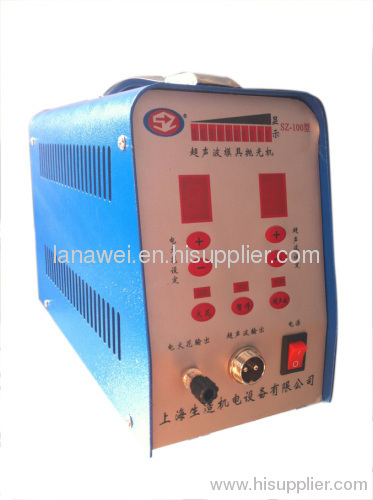

SZ-100 Ultrasonic mold grinding machine / portable metal surface grinding machine / mould grinding equipment Model: SZ-100
1.Application range: Polish complicate cavity, narrow slit, blind hole and other rough surface in all kinds of moulds (include hard alloy mould) to mirror smooth effect.

2. Material for polish: All kinds of metal, glass, jade and agate.
3. Surface roughness after polishing: <Ra0.012(13)
4. Grinding material: diamond paste, diamond file,
fiber stone, synthetic diamond grinding paste.
5. Discharge medium: Kerosene or water
6. Frequency of sound wave: 19-28KHZ
7. Electrical spark discharge high level time: 0.8μs-10μs
8. Working voltage: single phase 220V ±10% 50Hz
9. Power: 60W
10. Net Weight: 3.8KG
11. HS code: 8451800003
12.Package: Carton case

SZ-100 advantages:

1. Micro computer control, resonance frequency and automatic search and lockup function.

2. Nine section vibration of numerical control, with same size and electrical spark interval tracking function.

3. Nine section electrical spark numerical control strength.

4. Fine electrical spark reforming, which is very suitable to reform and polish micro work pieces.

5. It is energy saving as electrical spark output function use limit inductance storage and high technology.

6. Light weight transducer, easy to operate.

7. The controller occupies very small size on operating.
